Package de.xima.fc.workflow.designer.bpmn.node.flow_control

Enum FcSwitchBpmnModeler

java.lang.Object

java.lang.Enum<FcSwitchBpmnModeler>

de.xima.fc.workflow.designer.bpmn.node.flow_control.FcSwitchBpmnModeler

All Implemented Interfaces:

IWorkflowNodeBpmnModeler<FcSwitchProps>, Serializable, Comparable<FcSwitchBpmnModeler>

public enum FcSwitchBpmnModeler
extends Enum<FcSwitchBpmnModeler>
implements IWorkflowNodeBpmnModeler<FcSwitchProps>

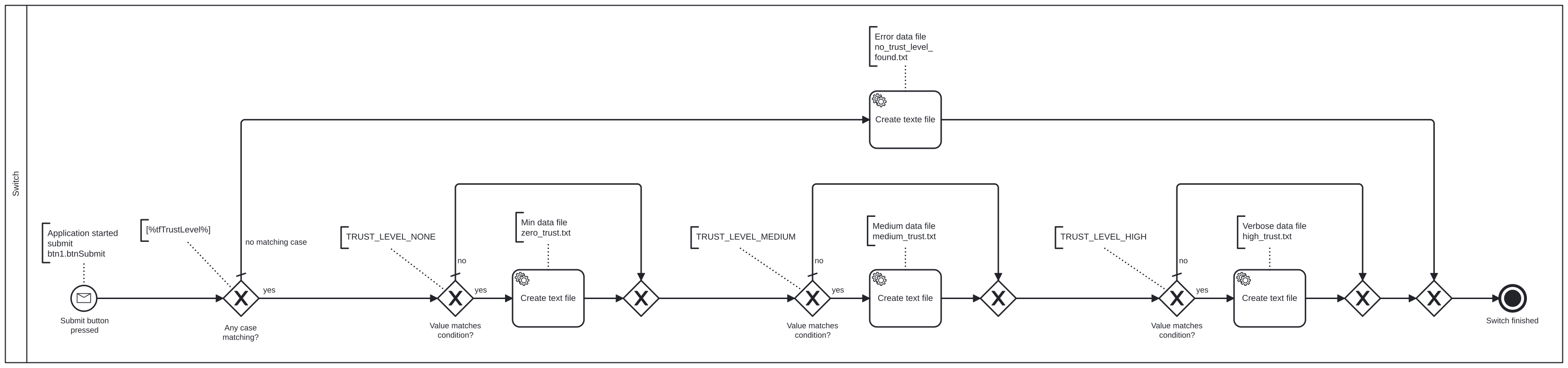

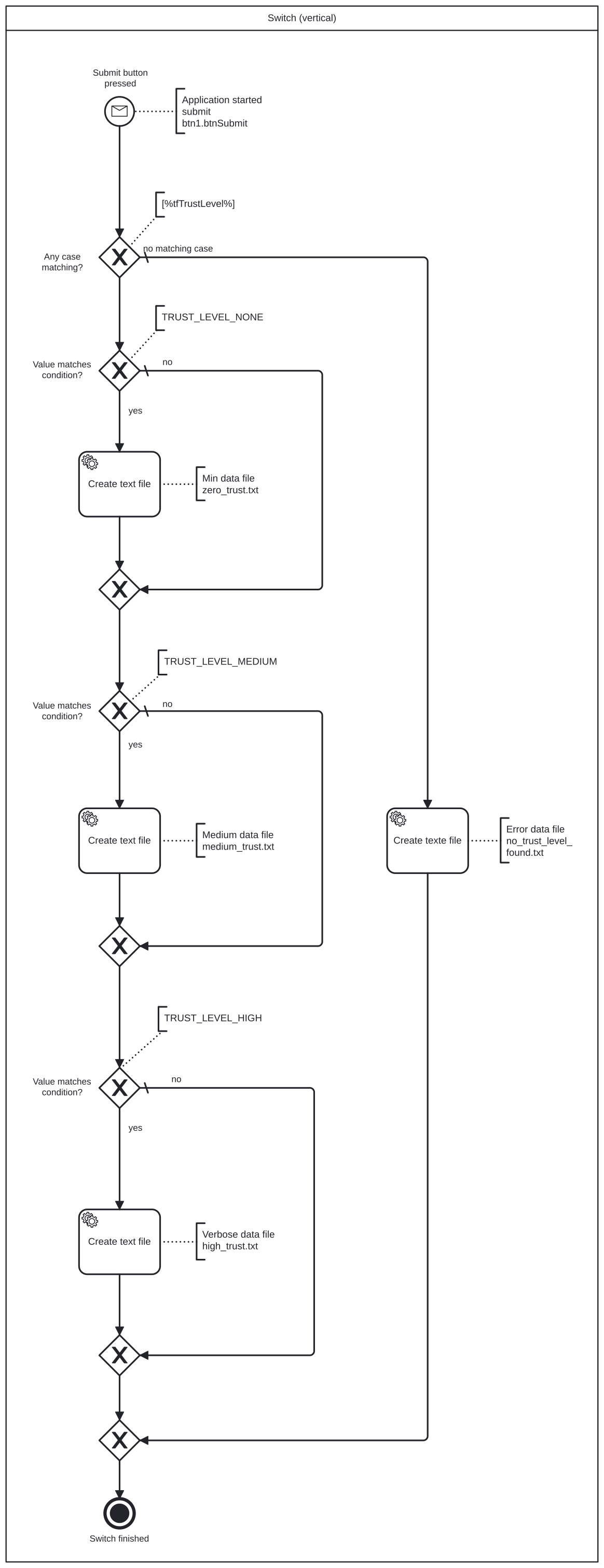

BPMN modeler for nodes of type switch. Creates a sequence of gateways, one for each switch case. Also adds an initial diverging gateway that checks whether any switch case matches. We cannot use inclusive gateways from the BPMN standard here, because they do not guarantee sequential execution. The workflow engine executes all matching switch cases in the order they were defined in the workflow designer.

Since:

8.4.0

Enum Constant Summary

Enum Constants

Enum Constant	Description
INSTANCE	The immutable singleton instance of this modeler.

Method Summary

Modifier and Type	Method	Description
void	modelNode(IModelWorkflowNodeParams<FcSwitchProps> params, IWorkflowBpmnModelContext context)	Models a WorkflowNode in the BPMN diagram.
static FcSwitchBpmnModeler	valueOf(String name)	Returns the enum constant of this type with the specified name.
static FcSwitchBpmnModeler[]	values()	Returns an array containing the constants of this enum type, in the order they are declared.

Methods inherited from class java.lang.Enum

clone, compareTo, equals, finalize, getDeclaringClass, hashCode, name, ordinal, toString, valueOf

Methods inherited from class java.lang.Object

getClass, notify, notifyAll, wait, wait, wait

Enum Constant Detail

INSTANCE

public static final FcSwitchBpmnModeler INSTANCE

The immutable singleton instance of this modeler.

Method Detail

values

public static FcSwitchBpmnModeler[] values()

Returns an array containing the constants of this enum type, in the order they are declared. This method may be used to iterate over the constants as follows:

for (FcSwitchBpmnModeler c : FcSwitchBpmnModeler.values())
    System.out.println(c);

Returns:

an array containing the constants of this enum type, in the order they are declared

valueOf

public static FcSwitchBpmnModeler valueOf(String name)

Returns the enum constant of this type with the specified name. The string must match exactly an identifier used to declare an enum constant in this type. (Extraneous whitespace characters are not permitted.)

Parameters:

name - the name of the enum constant to be returned.

Returns:

the enum constant with the specified name

Throws:

IllegalArgumentException - if this enum type has no constant with the specified name

NullPointerException - if the argument is null

modelNode

public void modelNode(IModelWorkflowNodeParams<FcSwitchProps> params,
                      IWorkflowBpmnModelContext context)

Description copied from interface: IWorkflowNodeBpmnModeler

Models a WorkflowNode in the BPMN diagram. This method is called once for the root node of each WorkflowTask in the workflow. Implementations for nodes that have children should call context.modelNode(node) on their child nodes if needed.

The responsibility of each modeler is to access the provided params.partBuilder() and add the appropriate data to that builder. That data then gets used to create a IStructuredBpmnModelPart for the node, see the class-level documentation of IStructuredBpmnModelPart for more info.

When modelling a workflow node as BPMN, the usual approach is to create a nested tree of alignment items, making use of the layouter. This tree then gets resolved to a flat map. Finally, the various method on IFlattenedAlignmentItemMap can be used to create the BPMN shapes, BPMN edges and sequence flows.

Specified by:

modelNode in interface IWorkflowNodeBpmnModeler<FcSwitchProps>

Parameters:

params - The parameters for the modeler, containing the WorkflowNode to model and its deserialized custom properties model, as well as the part builder to fill with data.

context - The context for creating the BPMN diagram, its lifecycle starts when the conversion (of the workflow to a BPMN diagram) starts and ends when the conversion ends. The context lets you access various helper methods such as the layouter() or colorizer, and also provides access to all global data such as all triggers and nodes in the workflow.
